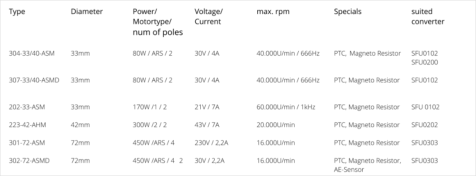

Dressing spindles
Type
Diameter
Power/
Voltage/
max. rpm
Specials
suited
Motortype/
Current
converter
num of poles
304-33/40-ASM
33mm
80W / ARS / 2
30V / 4A
40.000U/min / 666Hz
PTC,
Magneto Resistor
307-33/40-ASMD
33mm
80W / ARS / 2
30V / 4A
40.000U/min / 666Hz
PTC, Magneto Resistor
202-33-ASM
33mm
170W /1 / 2
21V / 7A
60.000U/min / 1kHz
PTC, Magneto Resistor
223-42-AHM
42mm
300W /2 / 2
43V / 7A
20.000U/min
PTC, Magneto Resistor
301-72-ASM
72mm
450W /ARS / 4
230V / 2,2A
16.000U/min
PTC, Magneto Resistor
302-72-ASMD
72mm
450W /ARS / 4
2
230V / 2,2A
16.000U/min
PTC, Magneto Resistor,
AE-Sensor

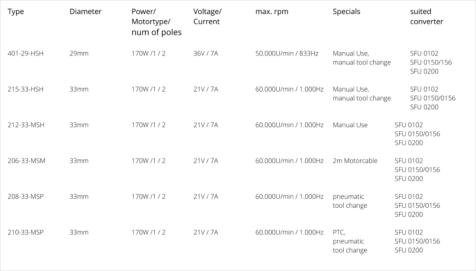

Spindles for manual use and machine use
170W Power
Type
Diameter
Power/
Voltage/
max. rpm
Specials
suited
Motortype/
Current
converter
num of poles
401-29-HSH
29mm
170W /1 / 2
36V / 7A
50.000U/min / 833Hz
Manual Use,
manual tool change
215-33-HSH
33mm
170W /1 / 2
21V / 7A
60.000U/min / 1.000Hz
Manual Use,
manual tool change
212-33-MSH
33mm
170W /1 / 2
21V / 7A
60.000U/min / 1.000Hz
Manual Use
206-33-MSM
33mm
170W /1 / 2
21V / 7A
60.000U/min / 1.000Hz
2m Motorcable
208-33-MSP
33mm
170W /1 / 2
21V / 7A
60.000U/min / 1.000Hz
pneumatic
tool change
210-33-MSP
33mm
170W /1 / 2
21V / 7A
60.000U/min / 1.000Hz
PTC,
pneumatic
tool change

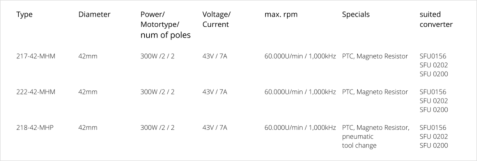

Spindles for Machinery
300W Power
Type
Diameter
Power/
Voltage/
max. rpm
Specials
suited
Motortype/
Current
converter
num of poles
217-42-MHM
42mm
300W /2 / 2
43V / 7A
60.000U/min / 1,000kHz
PTC, Magneto Resistor
222-42-MHM
42mm
300W /2 / 2
43V / 7A
60.000U/min / 1,000kHz
PTC, Magneto Resistor
218-42-MHP
42mm
300W /2 / 2
43V / 7A
60.000U/min / 1,000kHz
PTC, Magneto Resistor,
pneumatic
tool change

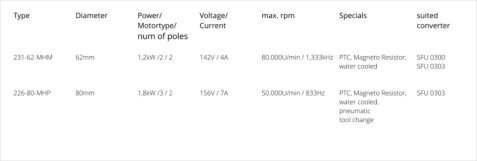

Spindles for Machinery
1,2 - 1,8 kW Power
Type
Diameter
Power/
Voltage/
max. rpm
Specials
suited
Motortype/
Current
converter
num of poles
226-80-MHP
80mm
1,8kW /3 / 2
156V / 7A
50.000U/min / 833Hz
PTC, Magneto Resistor,
water cooled,
pneumatic
tool change

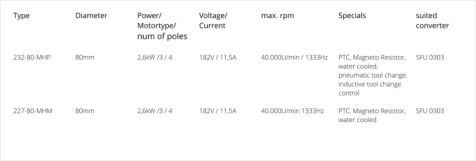

Spindles for Machinery
2,6 kW Power
Type
Diameter
Power/
Voltage/
max. rpm
Specials
suited
Motortype/
Current
converter
num of poles
232-80-MHP
80mm
2,6kW /3 / 4
182V / 11,5A
40.000U/min / 1333Hz
PTC, Magneto Resistor,
water cooled,
pneumatic tool change,
inductive tool change
control
227-80-MHM
80mm
2,6kW /3 / 4
182V / 11,5A
40.000U/min 1333Hz
PTC, Magneto Resistor,
water cooled
Spindles for Machinery
